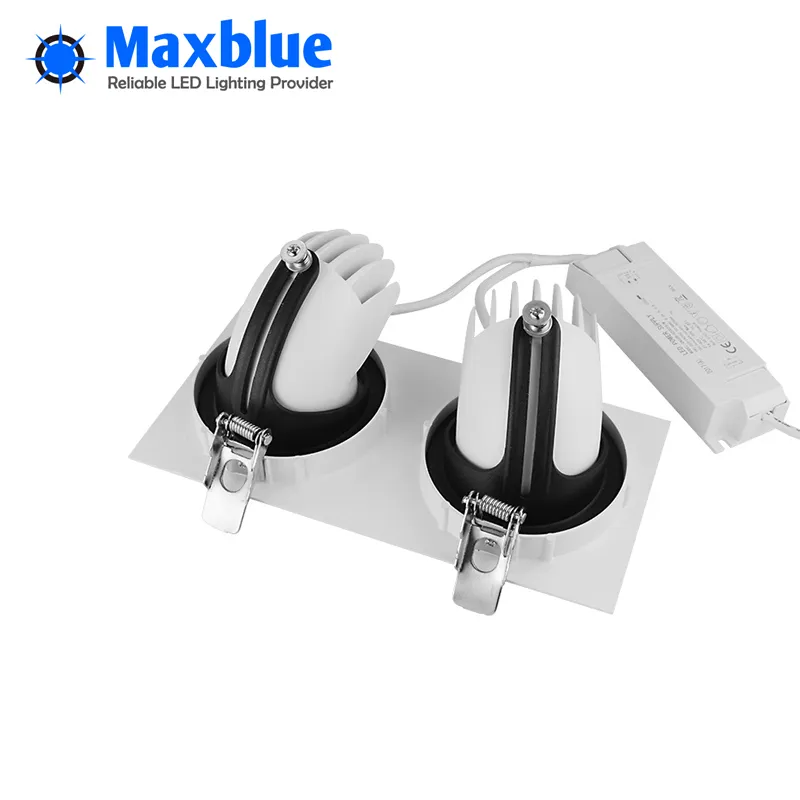

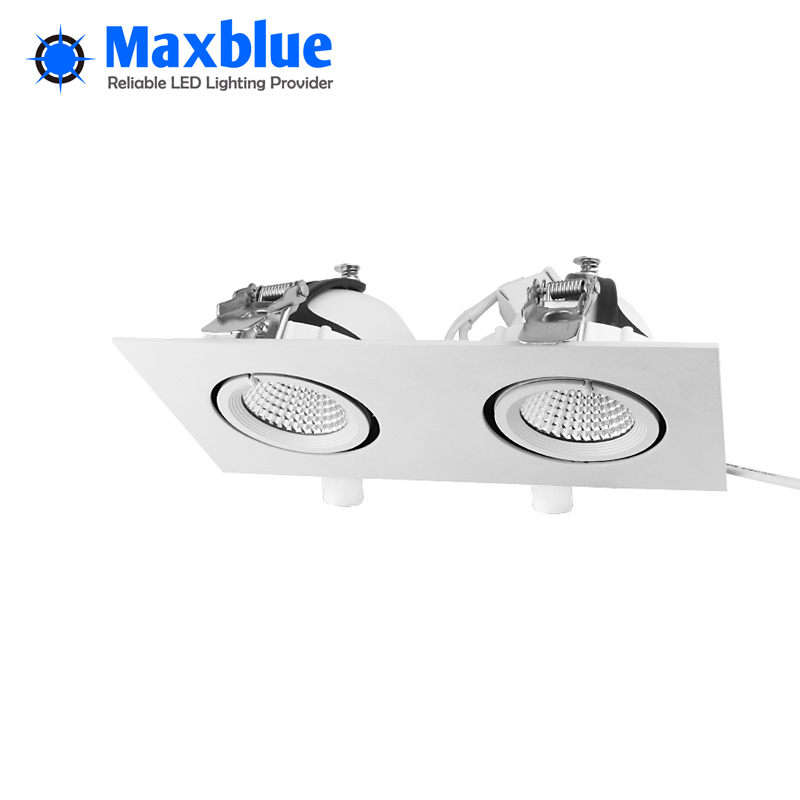

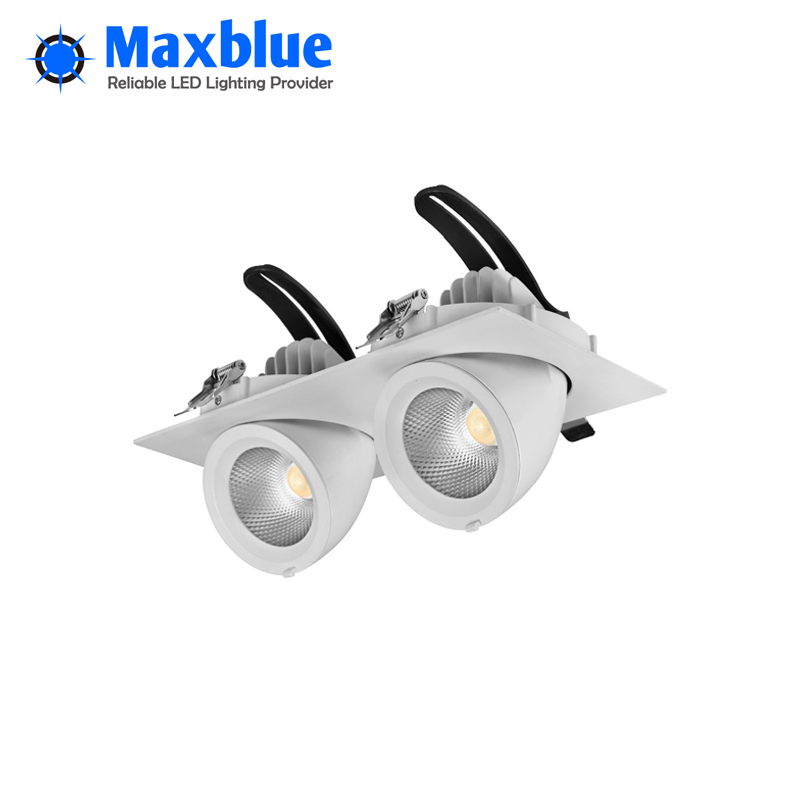

2*40W Double Head Square LED Gimbal Downlight Recessed LED Ceiling Light
| TECHNICAL DATA | ||
| Product Info | Model # | MB-TKL-80W |
| Wattage | 80W | |
| Luminous Output | 7200lm±10% @3000K | |
| Energy Class | A+ | |
| Electrical | Input Voltage | 200-240VAC 50/60Hz |
| Power Factor | >0.9 | |
| Dimming | On-Off / TRIAC available | |
| Flickering | Non-flicker | |
| Optical | LED Type | COB (CREE/Citizen) |
| CCT | 2700K, 3000K, 4000K, 5000K | |
| Beam Angle | 15° / 24° / 38° / 60° | |
| Mechanical | Dimensions | L330 x W163mm (Cut-out: L315*W150) |
| Adjustability | 350° Horizontal; 50° Vertical | |
| Material | Die-casting Aluminum | |
Precautionary Notes:

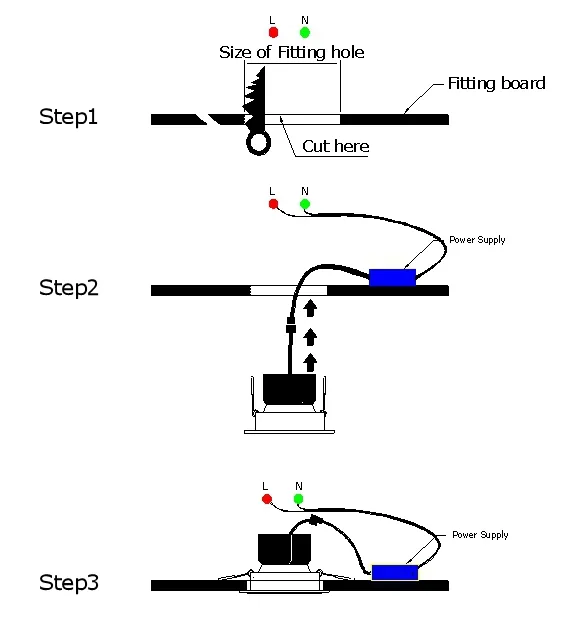

Steps:
Step 1: Cut out the fitting hole based on specifications.
Step 2: Connect the input wire of the power supply and install the light fixture.
Step 3: Test and finalize installation.

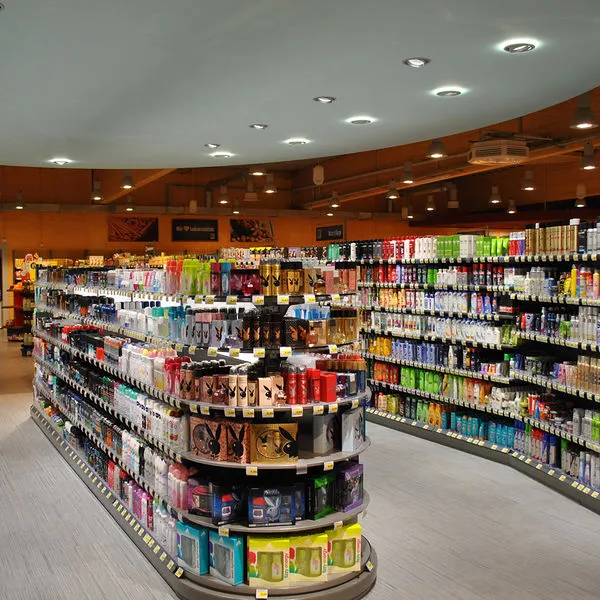

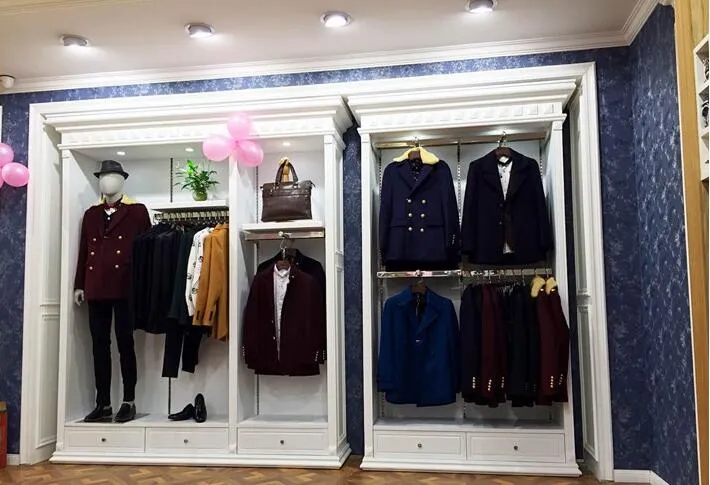

Perfectly suited for premium lighting environments:
Vision: For better lighting the world and keeping the blue sky maximum.
Mission: To be one of the best products and service brands in the LED lighting industry.
Core Values:

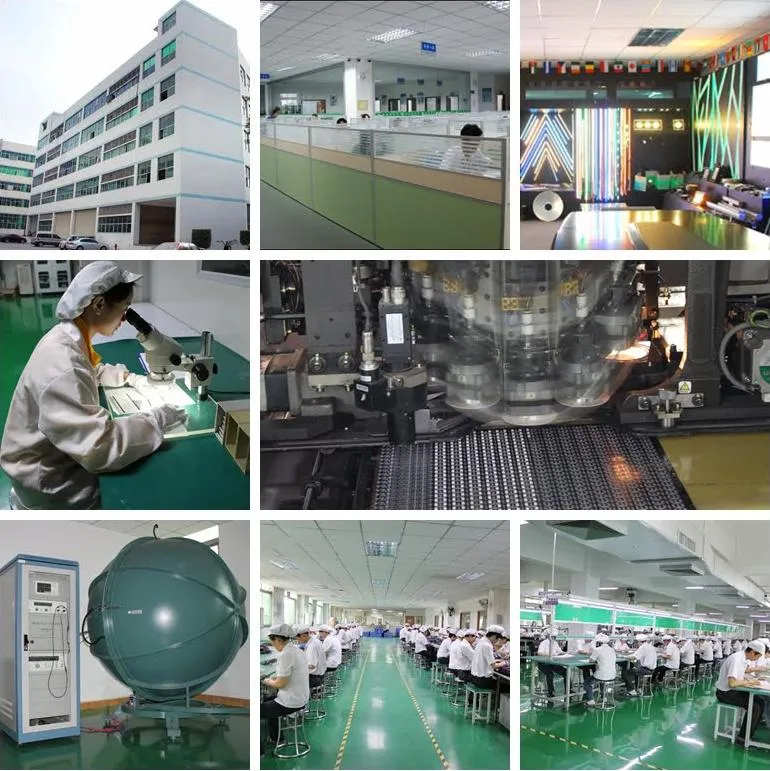

Equipped with ISO9001:2008 certified facilities, SMT production lines, and fully-automatic reflow machines. Our R&D team specializes in optical, electrical, and thermal design to ensure innovative products meet global market needs.
