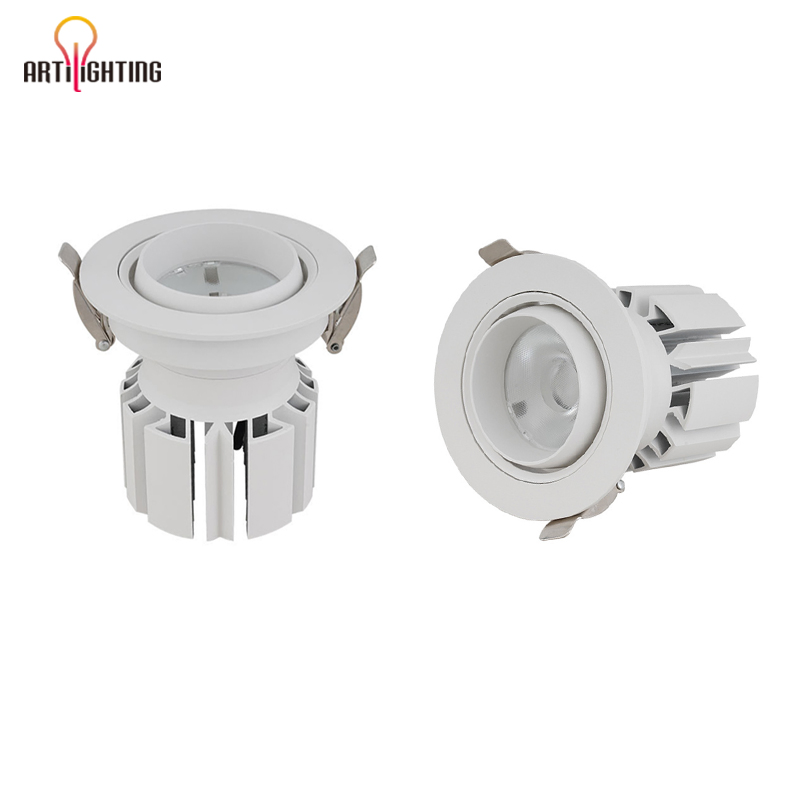

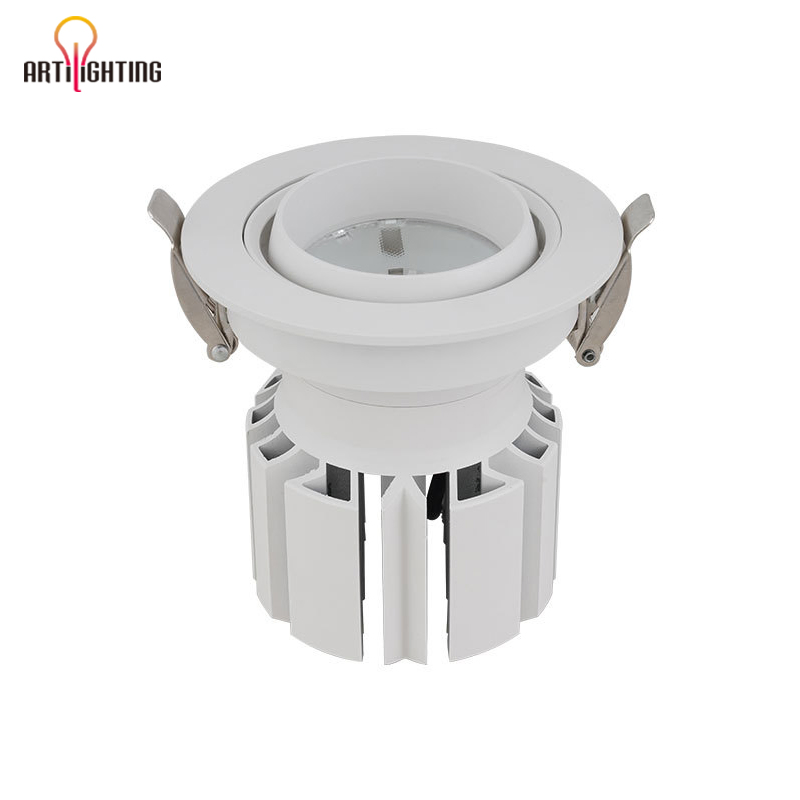

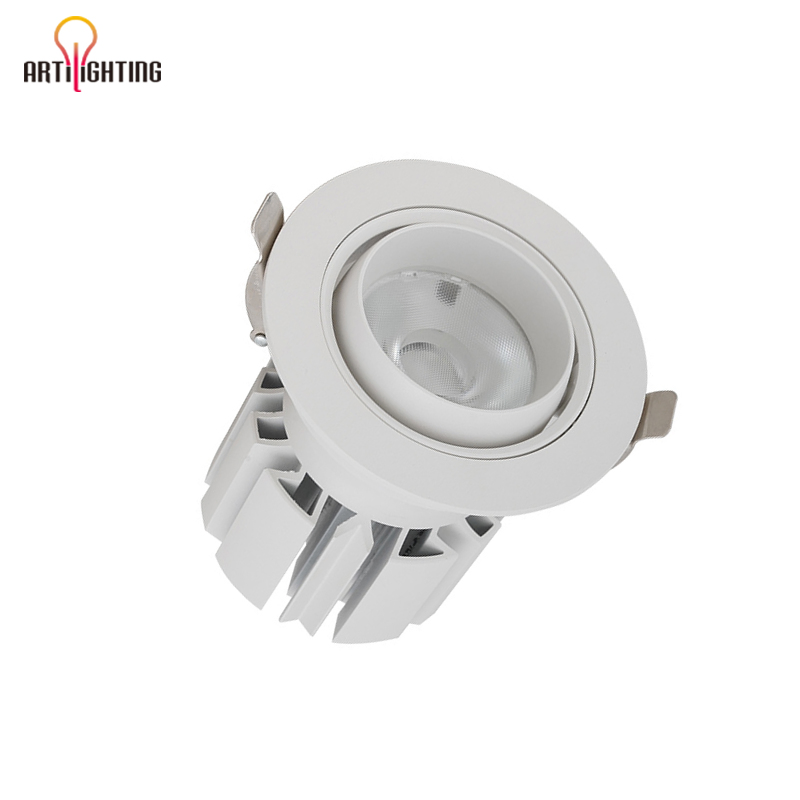

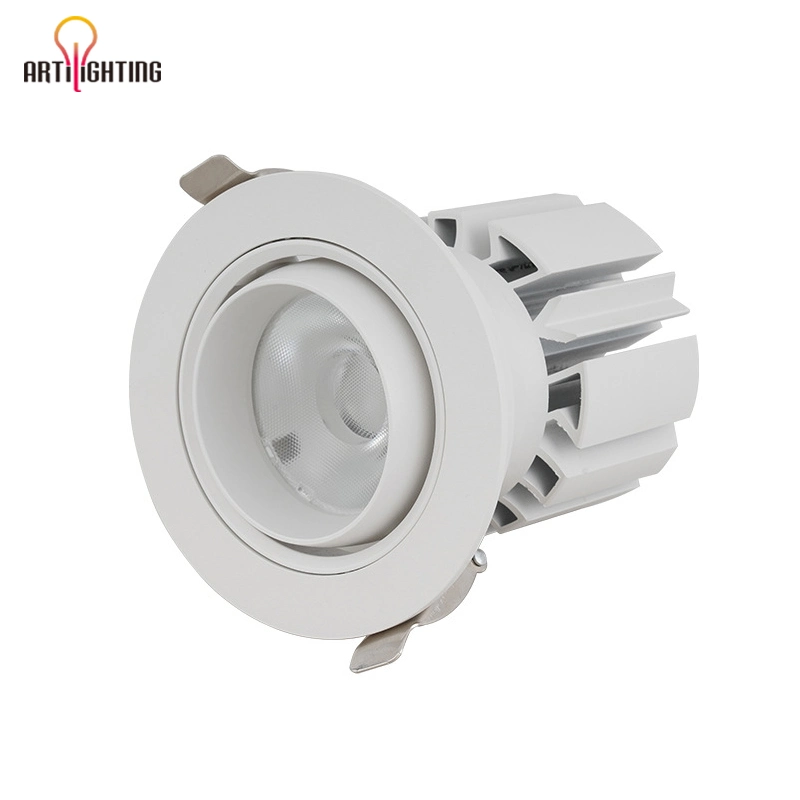

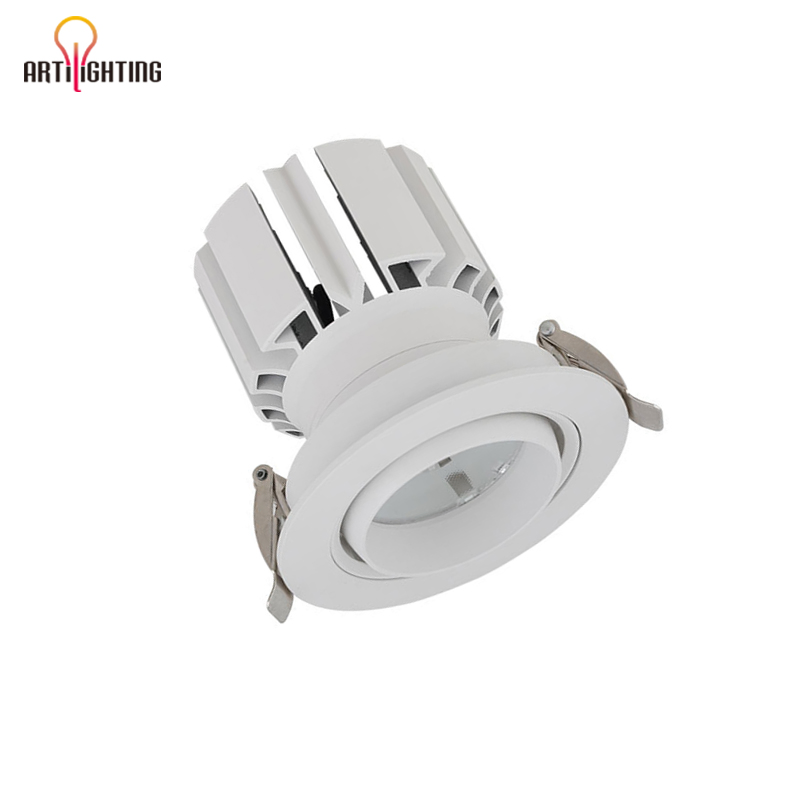

Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
1 / 5
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS
Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS

Dimmable Tunable Gimbal LED Downlight Angle Adjustable 4inch 40W 3-Inch 35W Retrofit Downlight COB CREE Epistar LED with Isolated Driver CE RoHS

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
MX-FX42
Power
7W to 50W
Color Temperature
Warm White, Pure White, Cool White
Material
Aluminum, Metal
Installation
Recessed / Plug Lamp
Warranty
3 Years
IP Rating
IP44
CRI
Ra>80 / Ra>95
Lumen Efficiency
100-110lm/W
UGR
<19
LED Chip
Epistar, CREE, Osram, Bridgelux COB
Certification
CCC, CE, EMC, ETL, GS, LVD, RoHS, SAA
Product Description

Dimmable Tunable Gimbal LED Downlight - Angle Adjustable recessed lighting solution. High-performance COB LED technology with isolated driver, featuring 360° rotation for versatile wall washing and spot lighting in villas, hotels, and luxury residential spaces.

Available in multiple sizes (2-inch, 3-inch, 4-inch) and wattages. Features deep anti-glare design with UGR < 19 for maximum eye comfort.
Item Type Size (mm) Wattage Cutout (mm) Material Features
FX42 (2'') 90*95mm 7W-18W 80mm Cold forged aluminum Adjustable 360°, Angle 15°/24°/36°/60°, Deep Anti-glare
FX42 (3'') 105*135mm 30W-35W 95mm Cold forged aluminum
FX42 (4'') 135*140mm 40W 115mm Cold forged aluminum

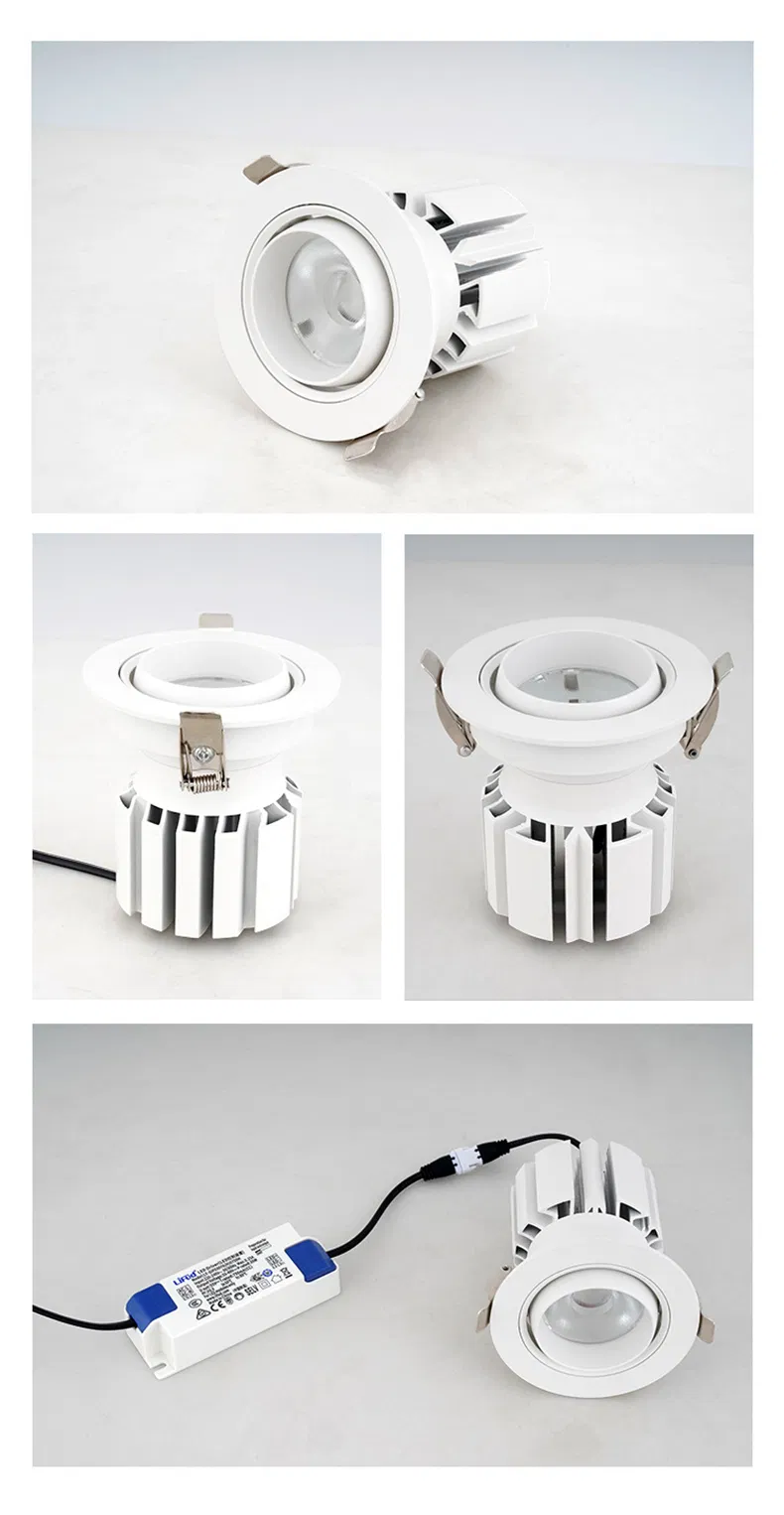

LED Downlight Specs

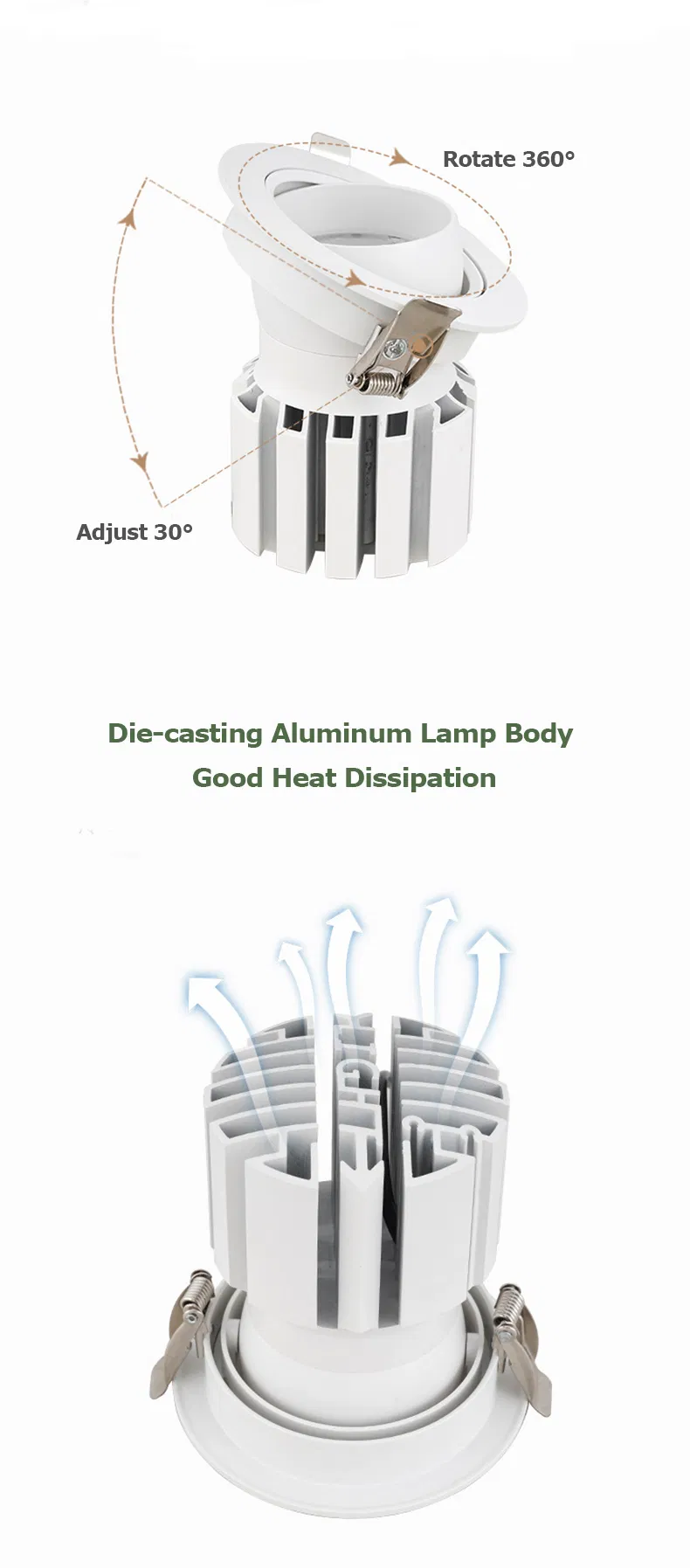

Angle Adjustable Design

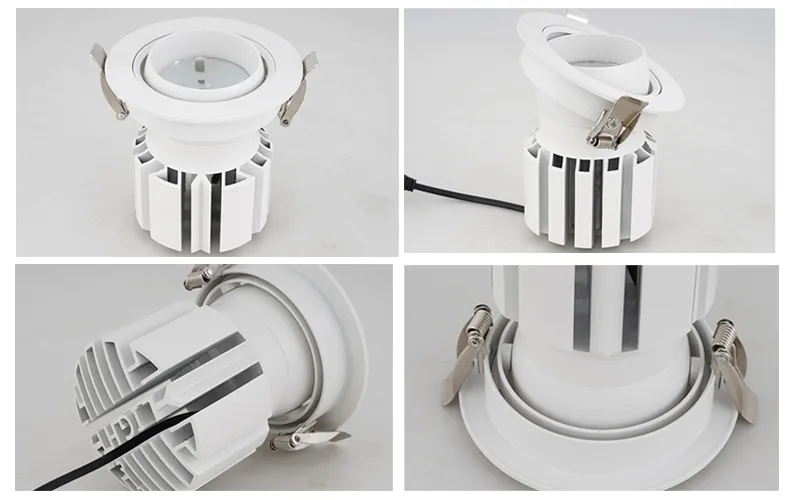

Installation View
Product Front

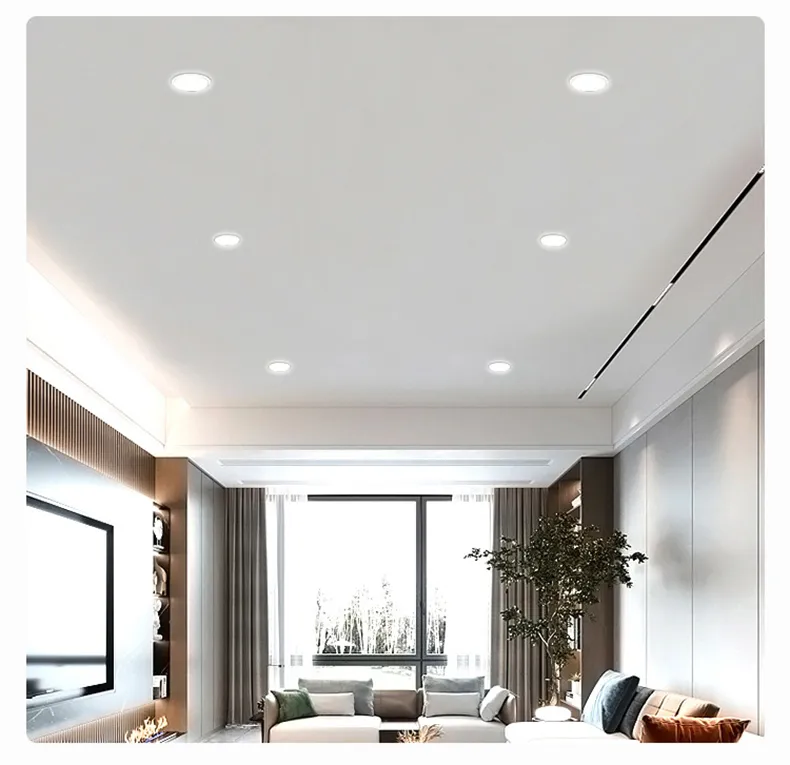

Lighting Effect
Dimensions

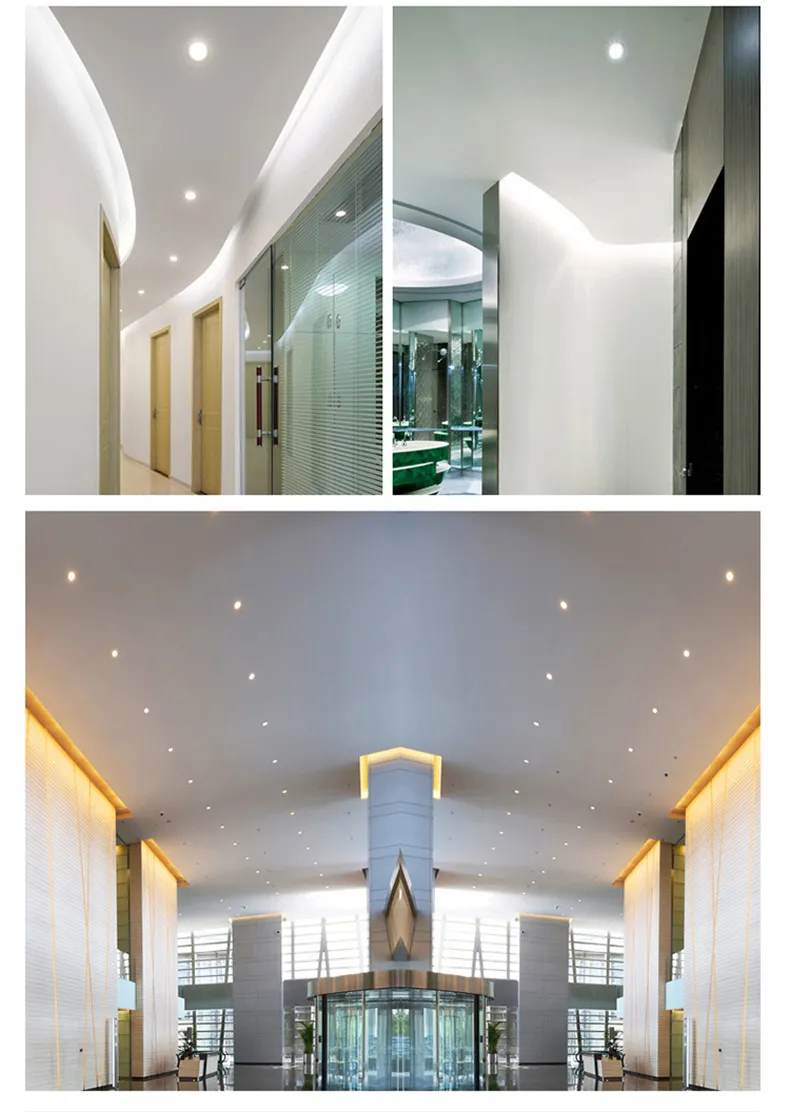

Components
Packaging
Why Choose Our Lighting Solutions
🏭
Factory Direct
Competitive pricing with direct manufacturer oversight.
⚡
Fast Delivery
1-3 days for samples; 4-7 days for mass production.
🎨
Customization
Research staff available to customize based on your requirements.
🏷️
Free Branding
Complimentary brand or logo printing on the lights.
🛠️
Technical Support
24-hour timely after-sale and maintenance service.
Certifications

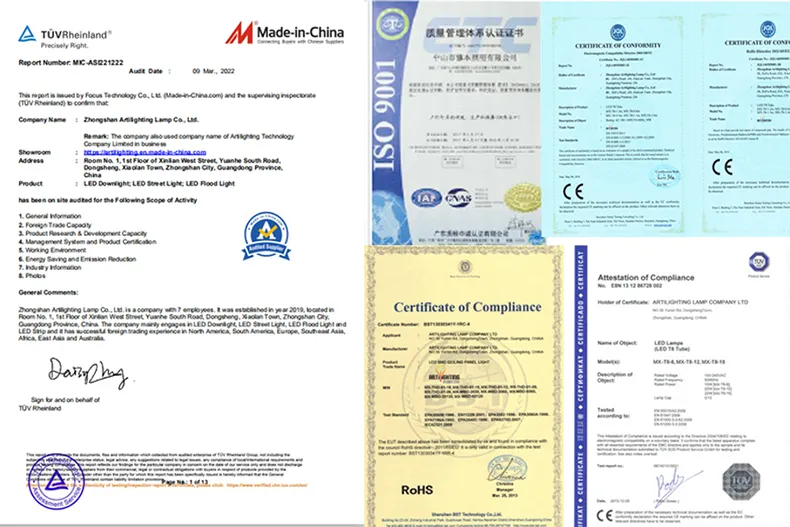

Certification Documents
Frequently Asked Questions
What is the rotation range of the gimbal downlight?
The LED deep anti-glare downlight features a 360° rotatable design, allowing you to adjust the lighting direction precisely for wall washing or highlighting specific areas.
What types of LED chips are available?
We offer high-quality COB options from leading brands including OSRAM, CREE, Epistar, and Bridgelux to ensure optimal brightness and longevity.
Is the driver included and is it safe?
Yes, each light comes with an isolated driver that supports AC85-265V input, ensuring stable performance and enhanced safety.
Does this product support dimming?
Yes, the MX-FX42 series includes dimmable and tunable options to suit different atmosphere requirements in residential or commercial settings.
What is the warranty period for these lights?
We provide a 3-year warranty on our LED downlights, covering quality-related issues and technical support.
What is the glare rating (UGR) of this series?
These lights are designed for high visual comfort with a UGR < 19, making them ideal for spaces where reduced eye strain is a priority.
