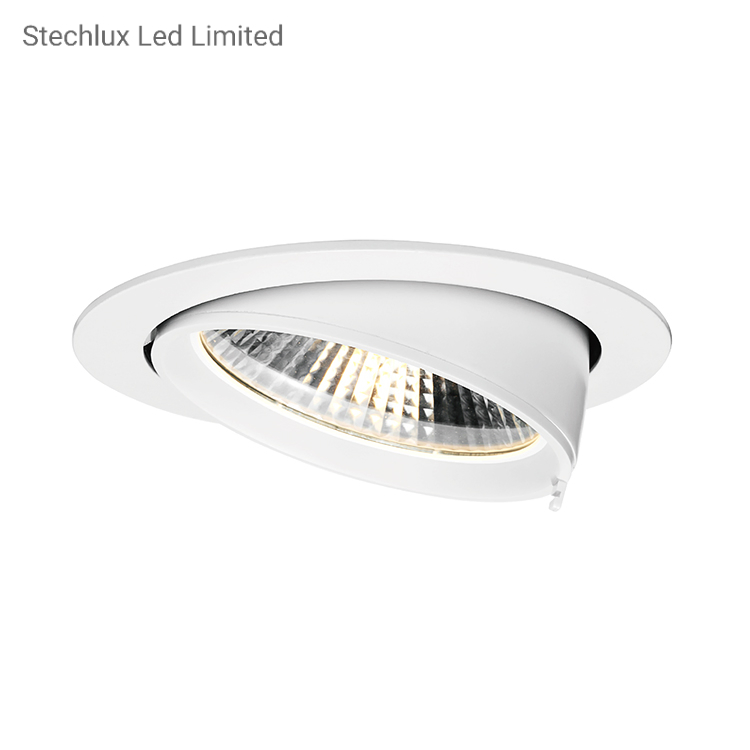

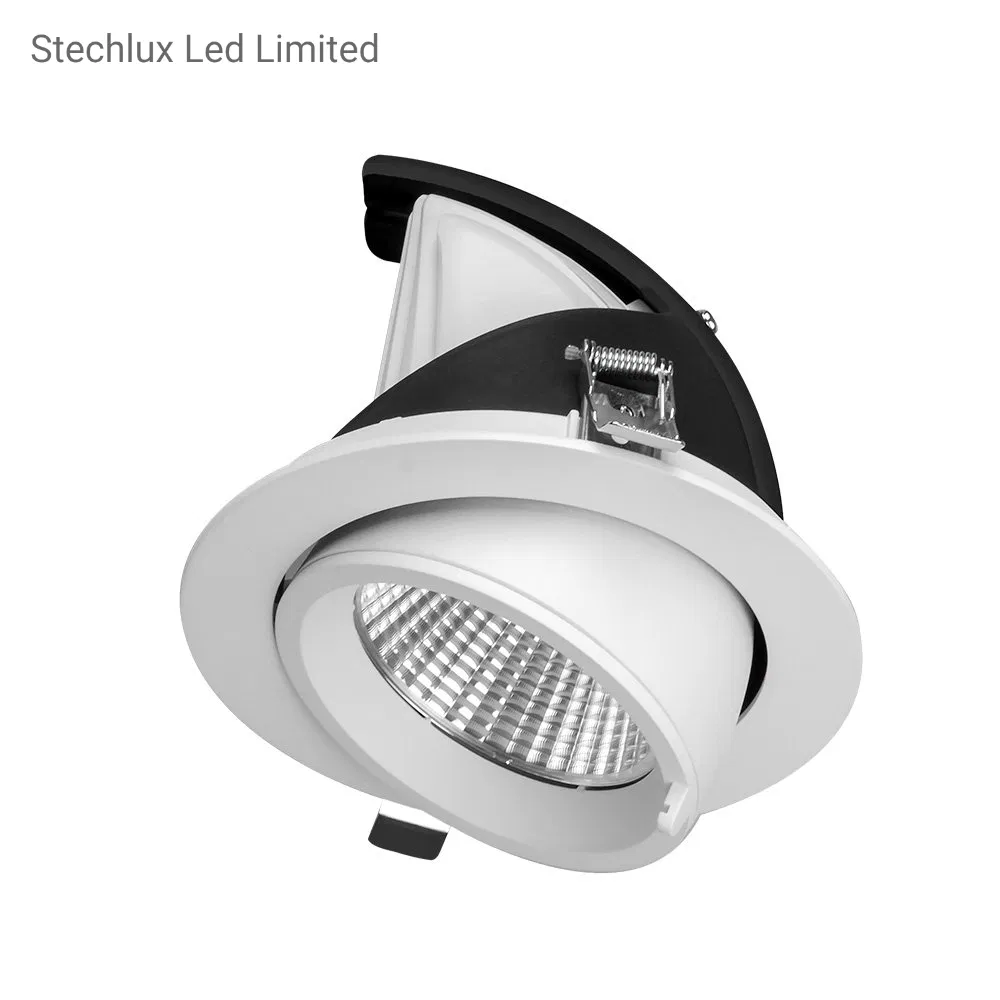

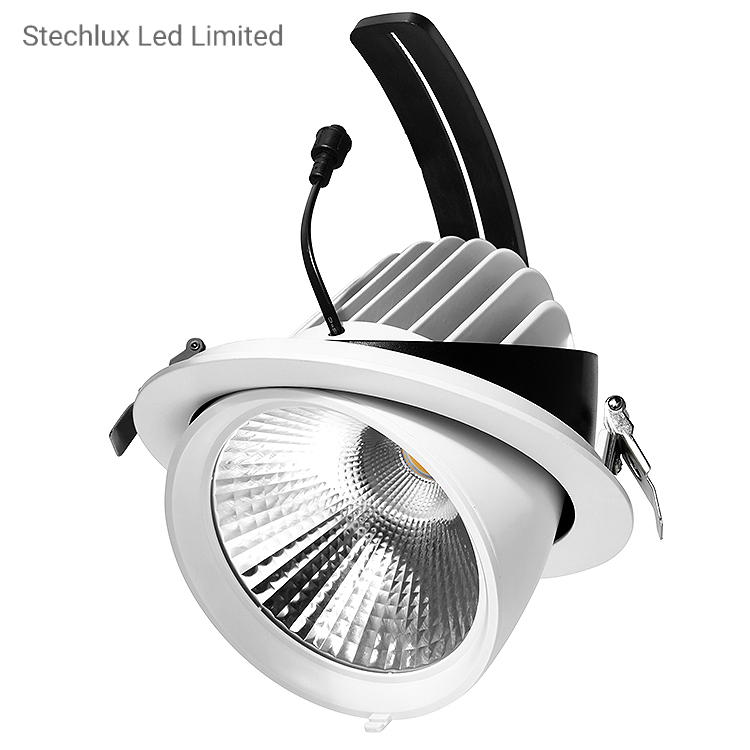

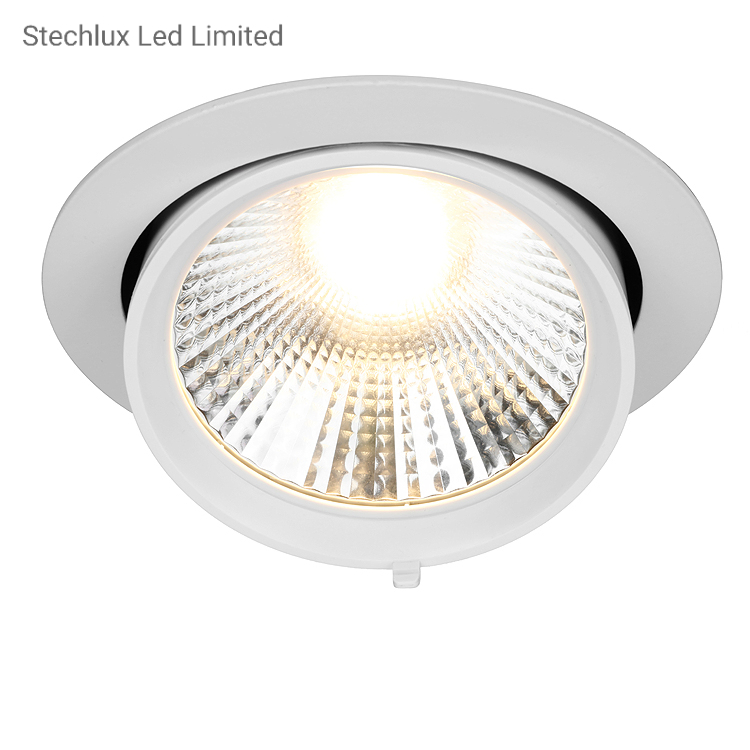

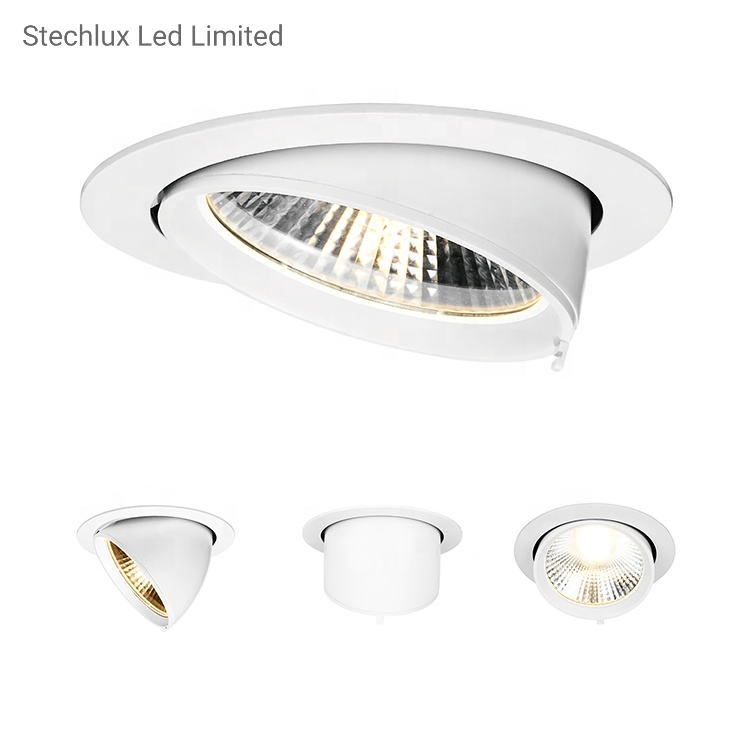

5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
1 / 5
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight
5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight

5 Years Warranty 7 Inch Recessed Flicker Free 40W COB LED Gimbal Downlight

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
ST-D4009
Power
40W
Color Temperature
Warm White
Material
Die-Casting Aluminum
Installation
Recessed
Switch Type
Touch On/Off Switch
Warranty
5 Years
IP Rating
IP33
Certification
CE, EMC, LVD, RoHS
Product Name
COB LED Gimbal Light
Cutout & Height
175mm & 160mm
LED Brand
CREE/Citizen/Luminus
Driver Brand
Lifud/Tridonic/Osram
CCT Options
2700/3000/4000K
💡

Product Description

Product Details

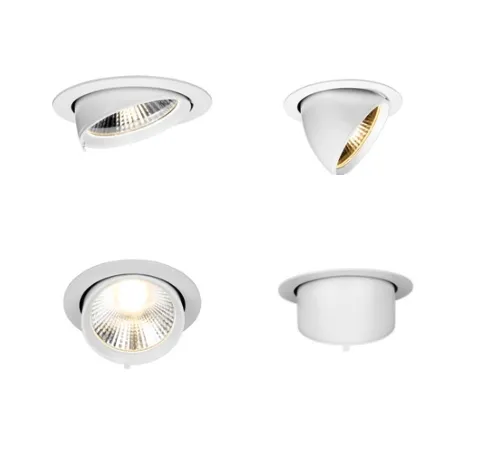

LED Gimbal Downlight Detail 1

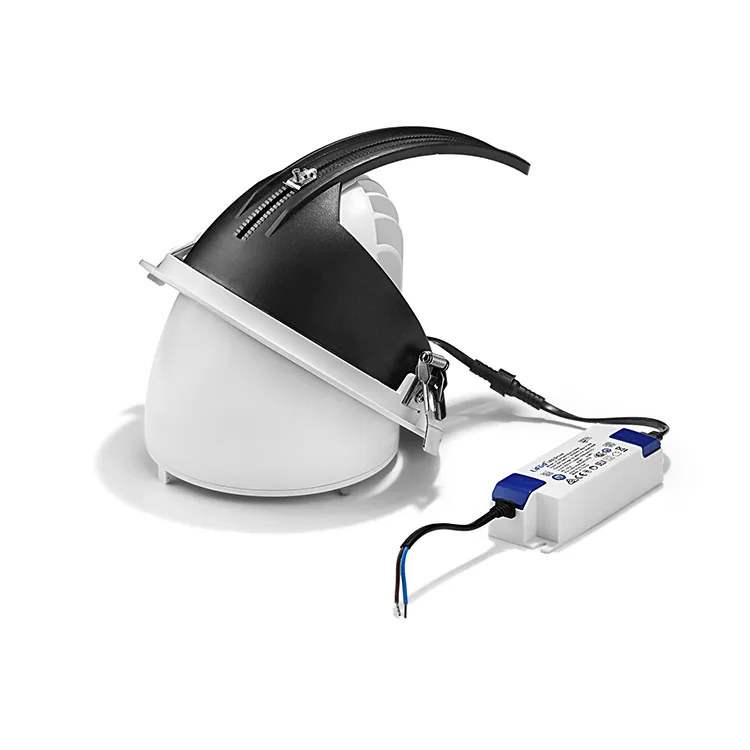

LED Gimbal Downlight Detail 2

Lamp Parameters

Lamp Lumen3600-4000lm
Raw MaterialDie-casting Aluminum
OpticsReflectors/Lens
Beam Angle15/24/36/60°
Warranty5 Years REAL Warranty
CertificateCE RoHS

LED & Driver Parameters

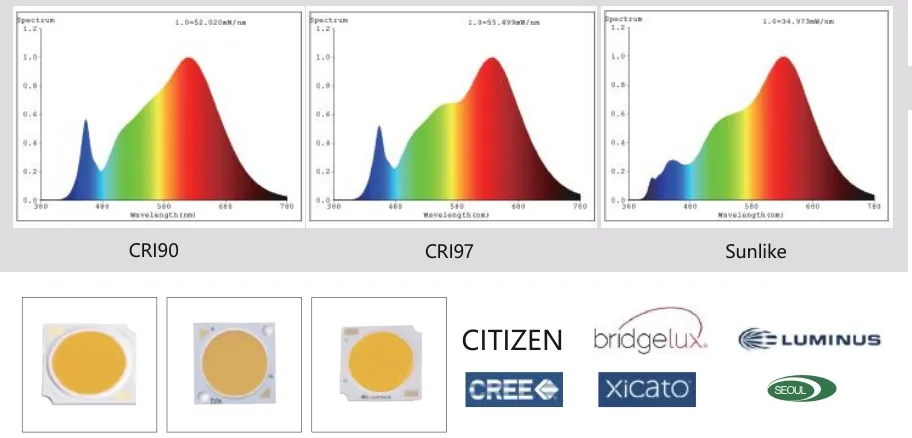

LED Chip Parameter

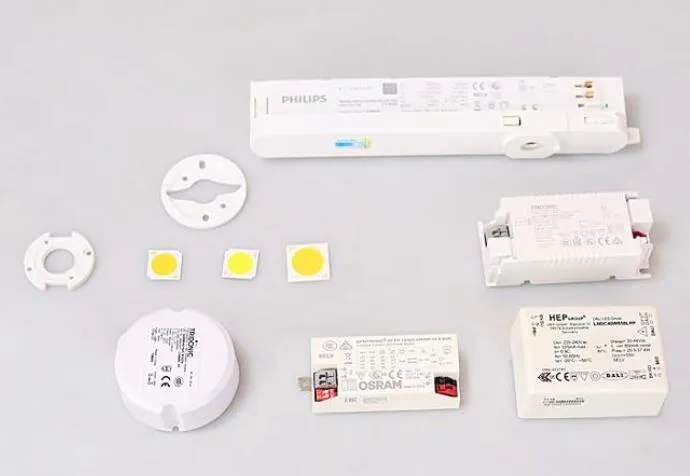

Driver Detail
Led ChipCree/Citizen/Luminus
CRI80/90/95
CCT2700/3000/4000K
SDCM<3
Lumen Efficiency135-150lm/w
Driver BrandOsram/Tridonic/Lifud/Hep
Dimming MethodNon-dim/Triac/0-10V/Dali/2.4G
PF (Power Factor)>0.95
No FlickeringYes
THD<20%
CertificatesCE/RoHS/ENEC/SAA/CB

Aging System

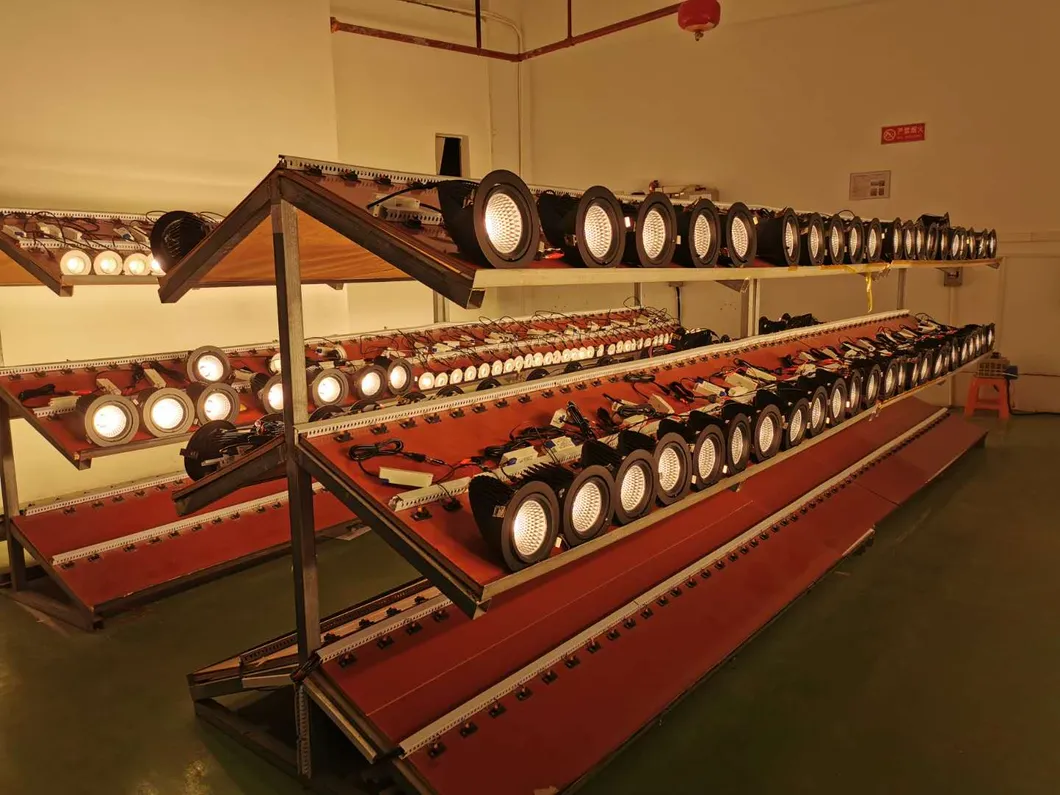

Quality Aging System

IES Test Files

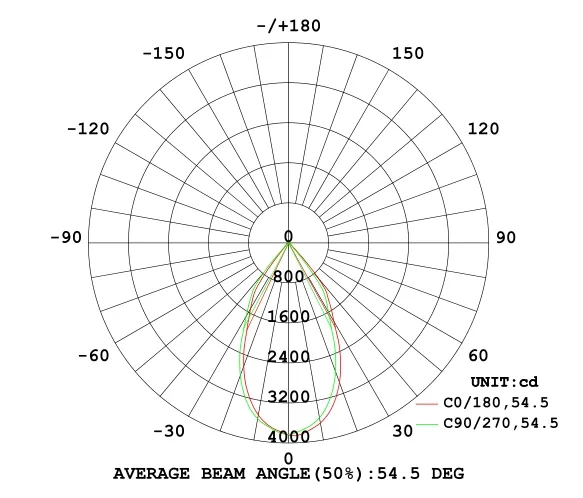

IES Test 1

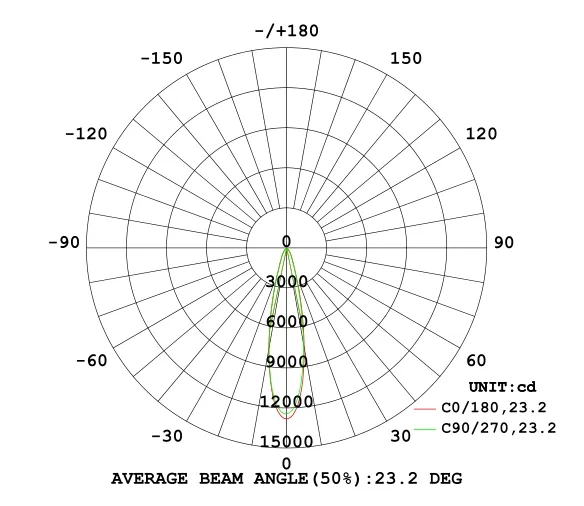

IES Test 2

Installation Guide

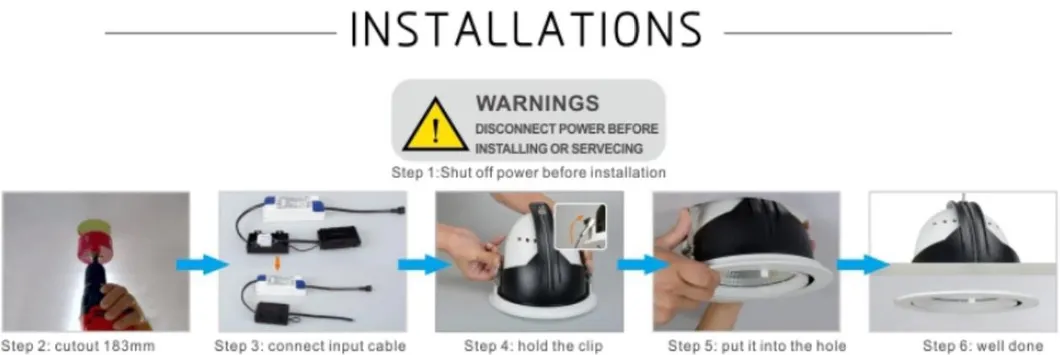

Installation Steps

Warranty Terms

• 100% replace with free transportation in case of any quality issue within 5 years.

• Provide materials for repair after 5 years.

Project Showcases

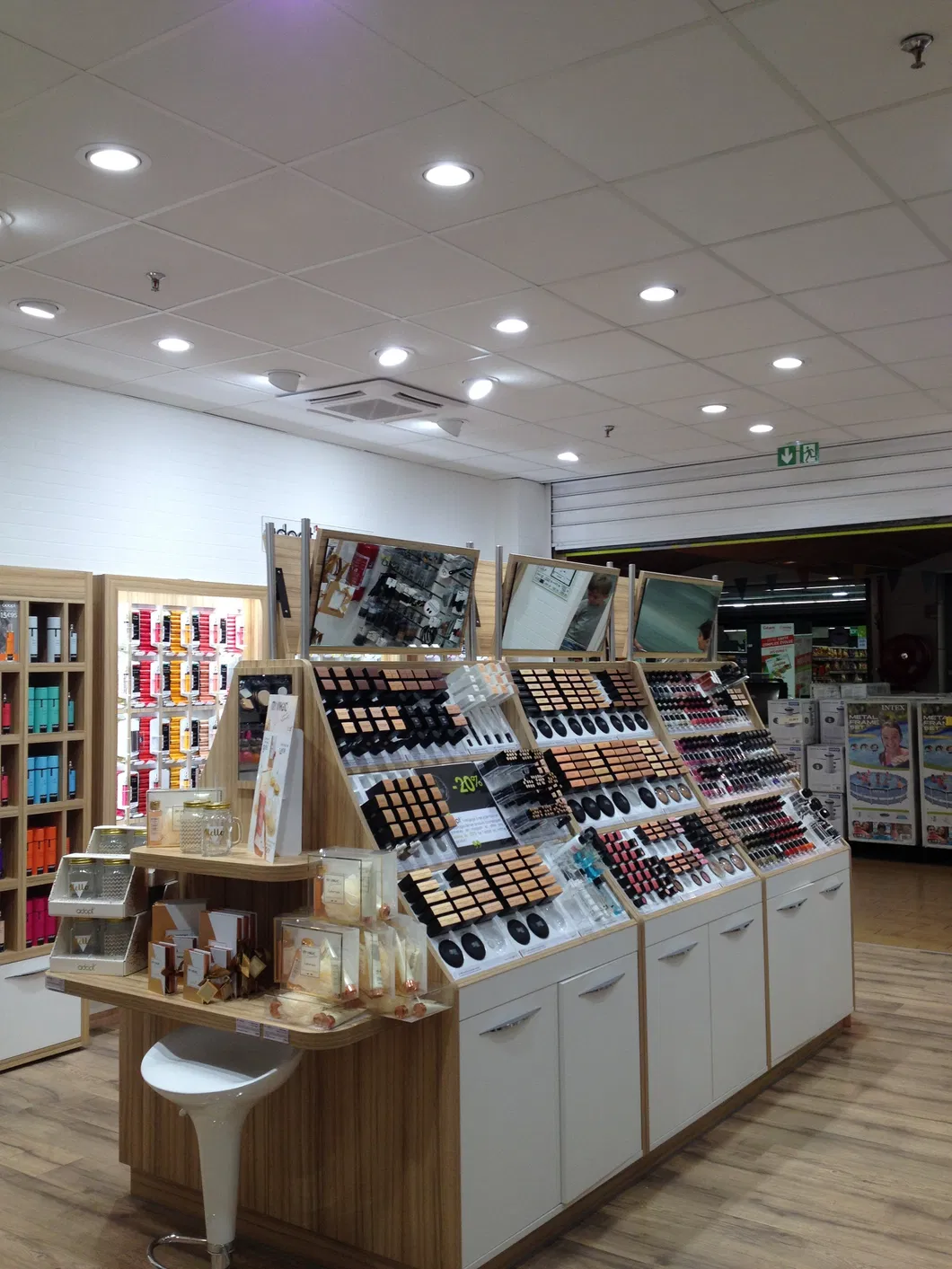

Project Showcase 1

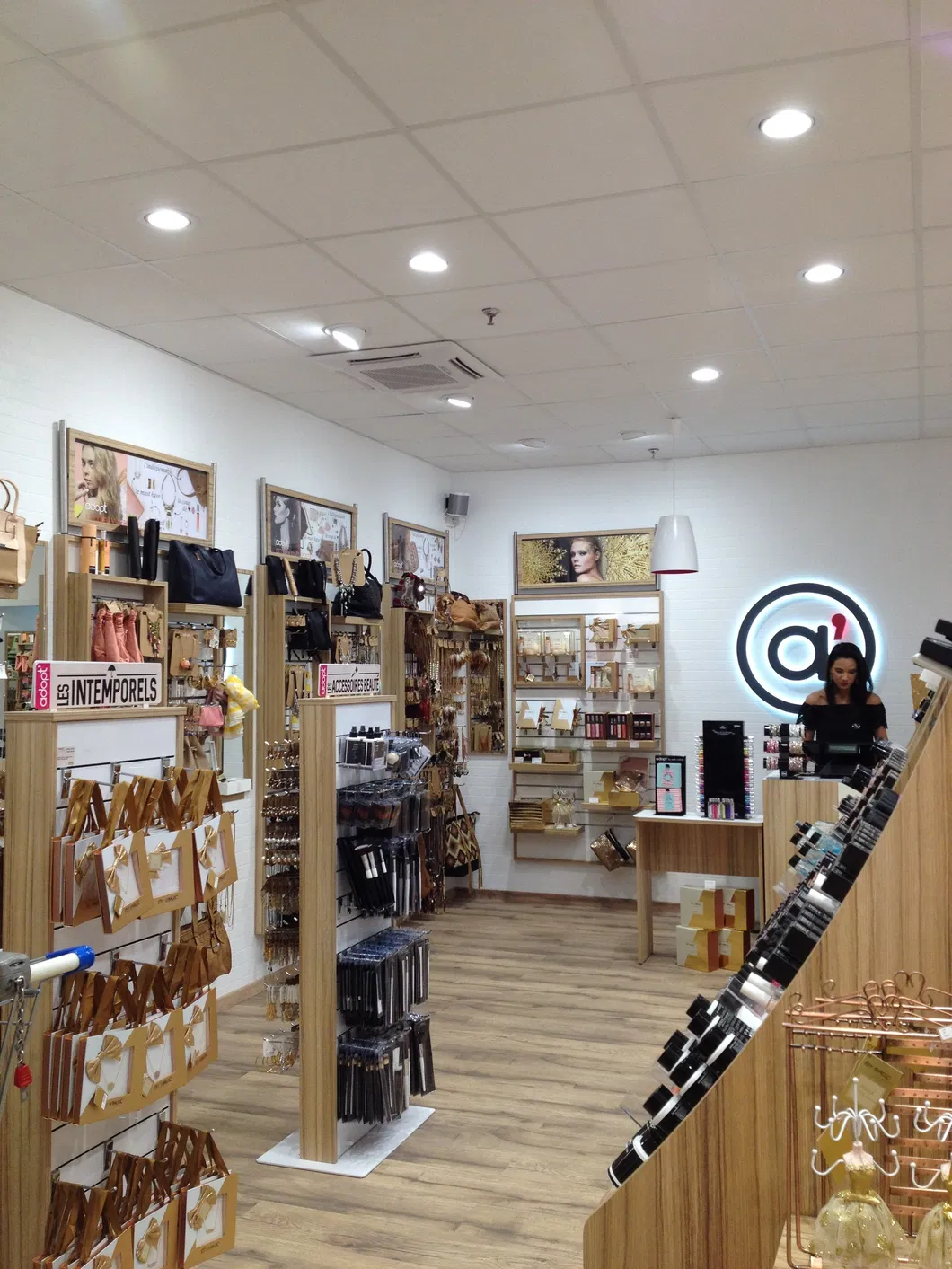

Project Showcase 2

Other Related Products

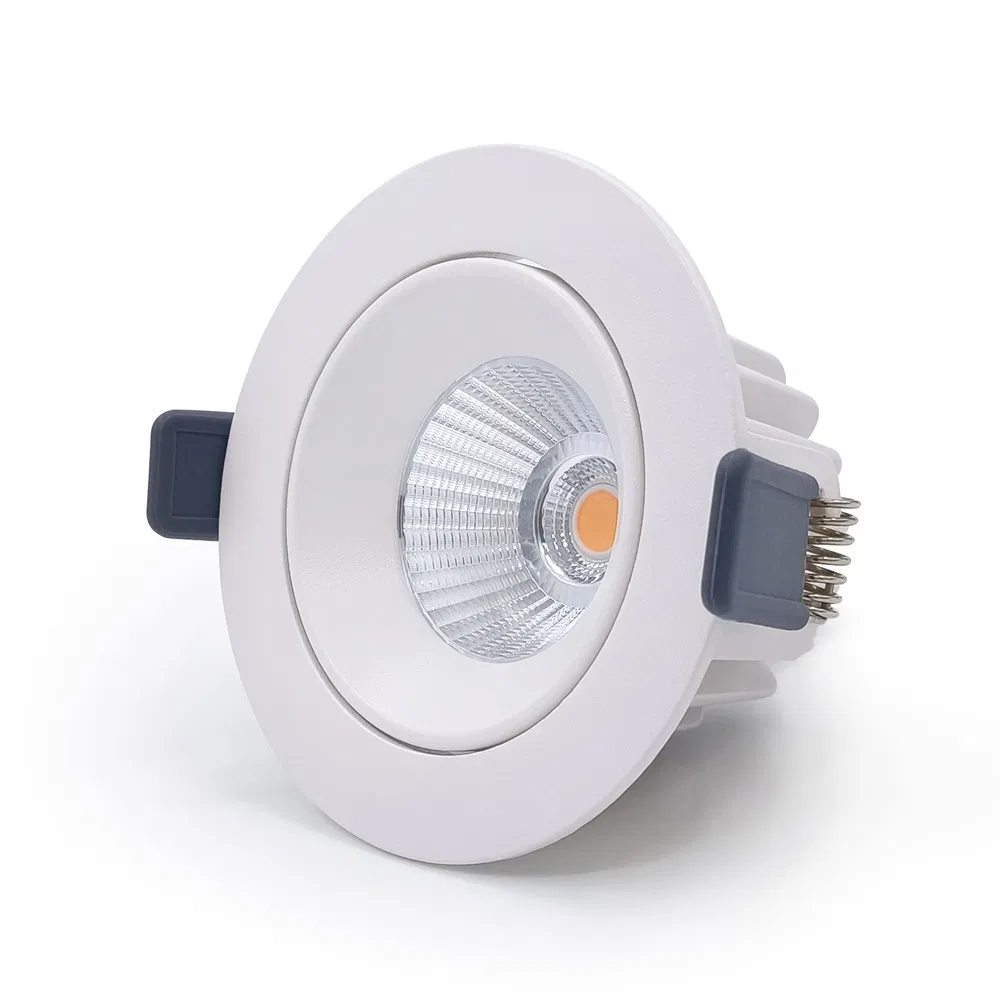

Related Product 1

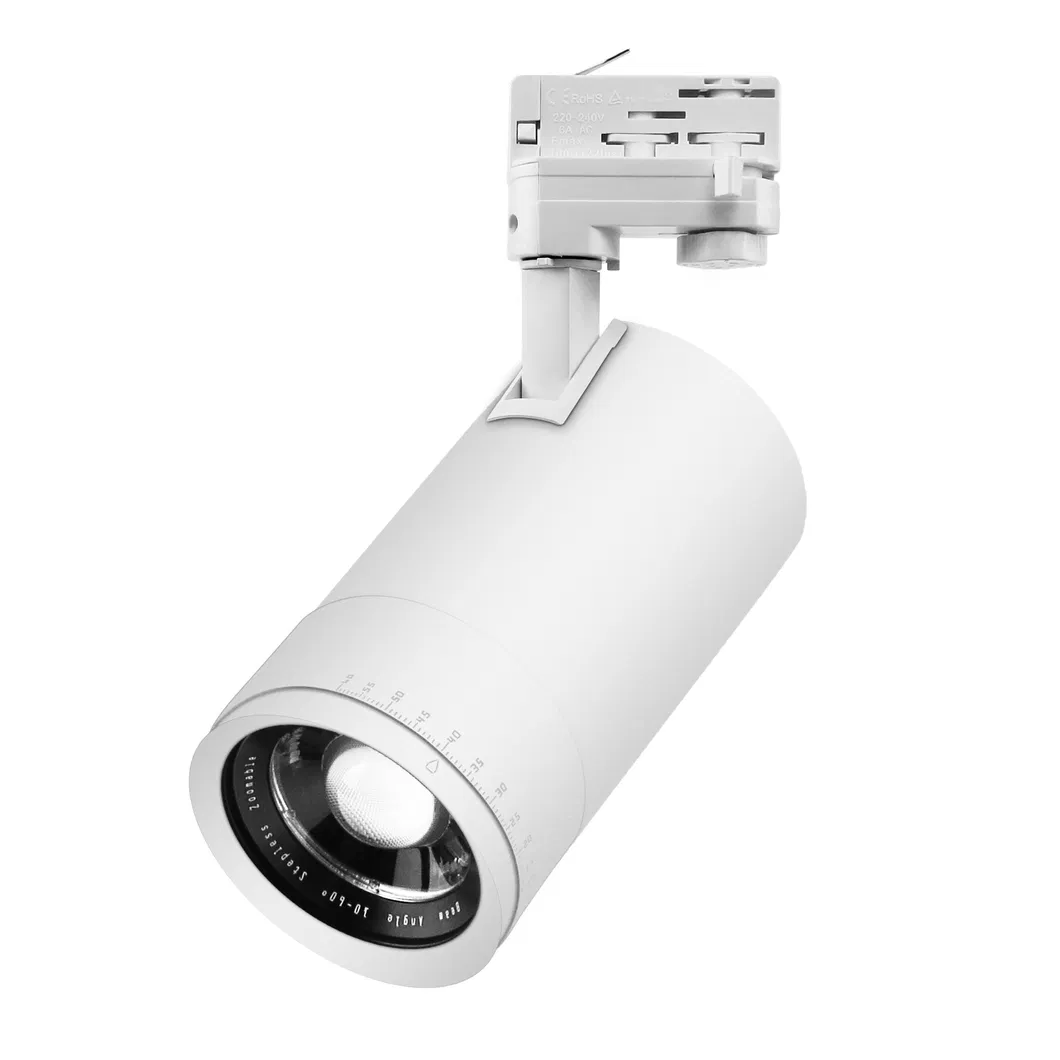

Related Product 2
❓

Frequently Asked Questions

Can I have a sample order for this LED gimbal light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable for your evaluation.
What is the typical lead time for production?
Samples usually require 3-15 days. For mass production, the standard lead time is 1-2 weeks depending on order quantity.
Is there a Minimum Order Quantity (MOQ) limit?
We maintain a low MOQ policy. You can order as little as 1pc for sample checking.
Which shipping methods are available and how long is the transit?
We typically ship via DHL, UPS, FedEx, or TNT, taking 3-5 days to arrive. Airline and sea shipping options are also available for larger volumes.
What kind of warranty do you provide?
We offer a comprehensive 5-year warranty on our products, including free replacement and transportation for any quality issues.
Can I customize the products with my own logo?
Yes, logo printing is available. Please inform us formally before production and confirm the design based on our initial sample.
