| Model NO. |
Infrared heating lamp |
| Color |
Clear / Golden / White |
| Material |
Glass |
| Certification |
CE |
| Working Time |
2000h-3000h |

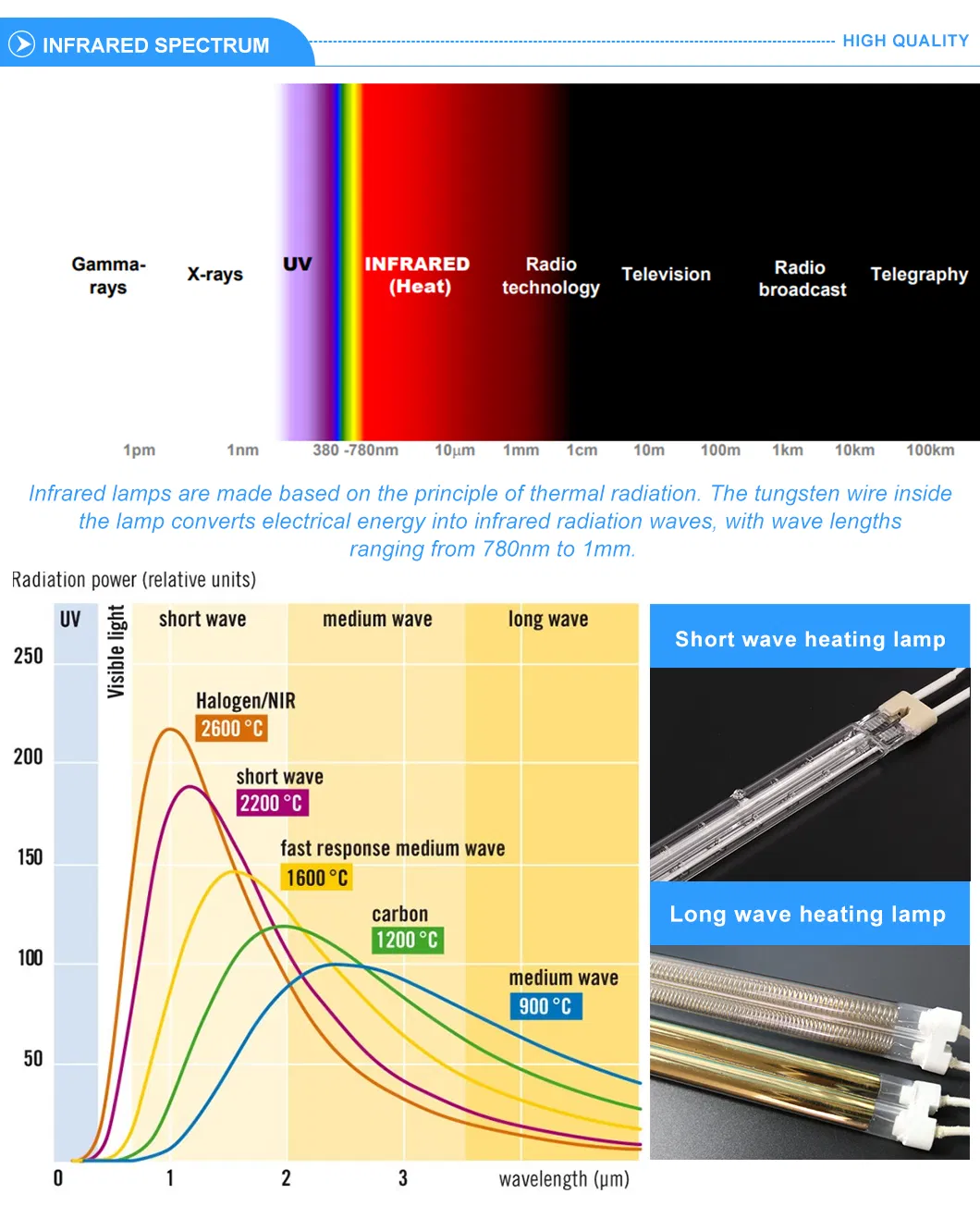

| IR-a Range |
780nm-1400nm / 1400-3000nm |
| Application |
Industrial Heating or Drying |
| Package Size |
120.00cm * 10.00cm * 10.00cm |
| Gross Weight |
1.000kg |

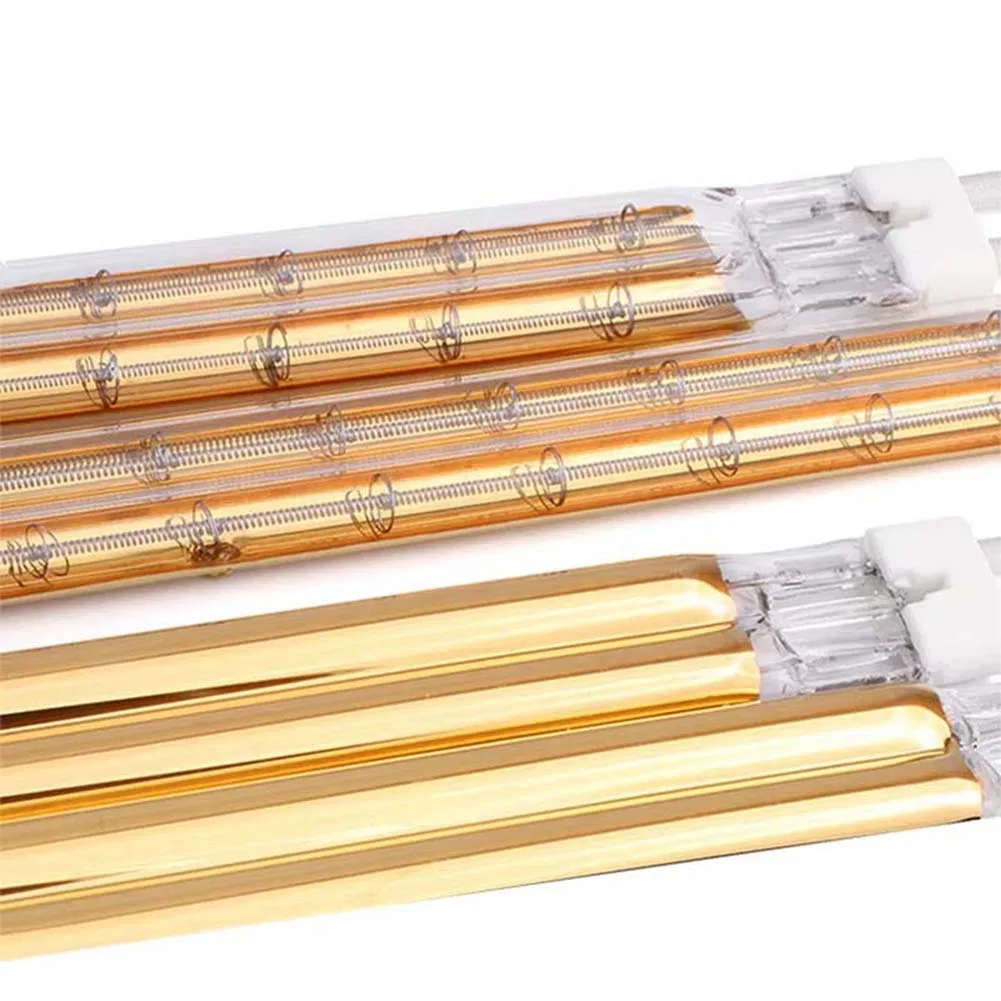

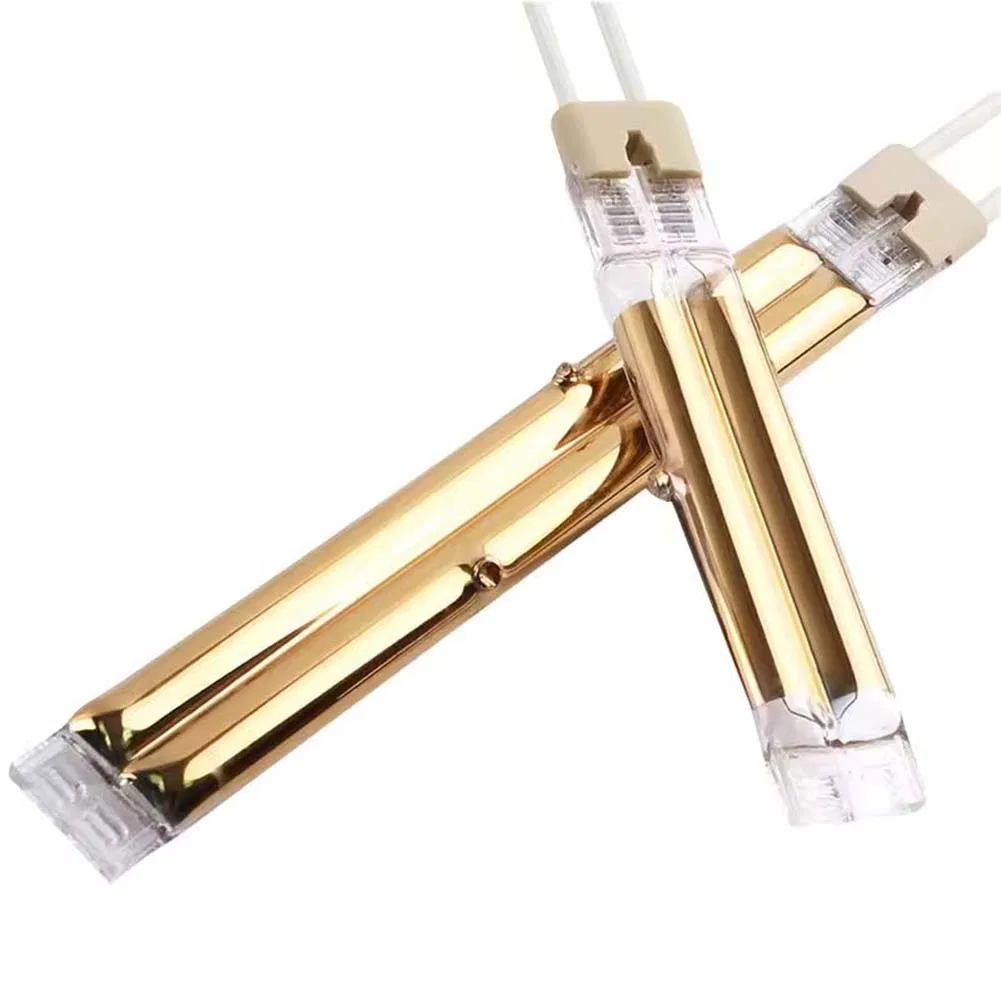

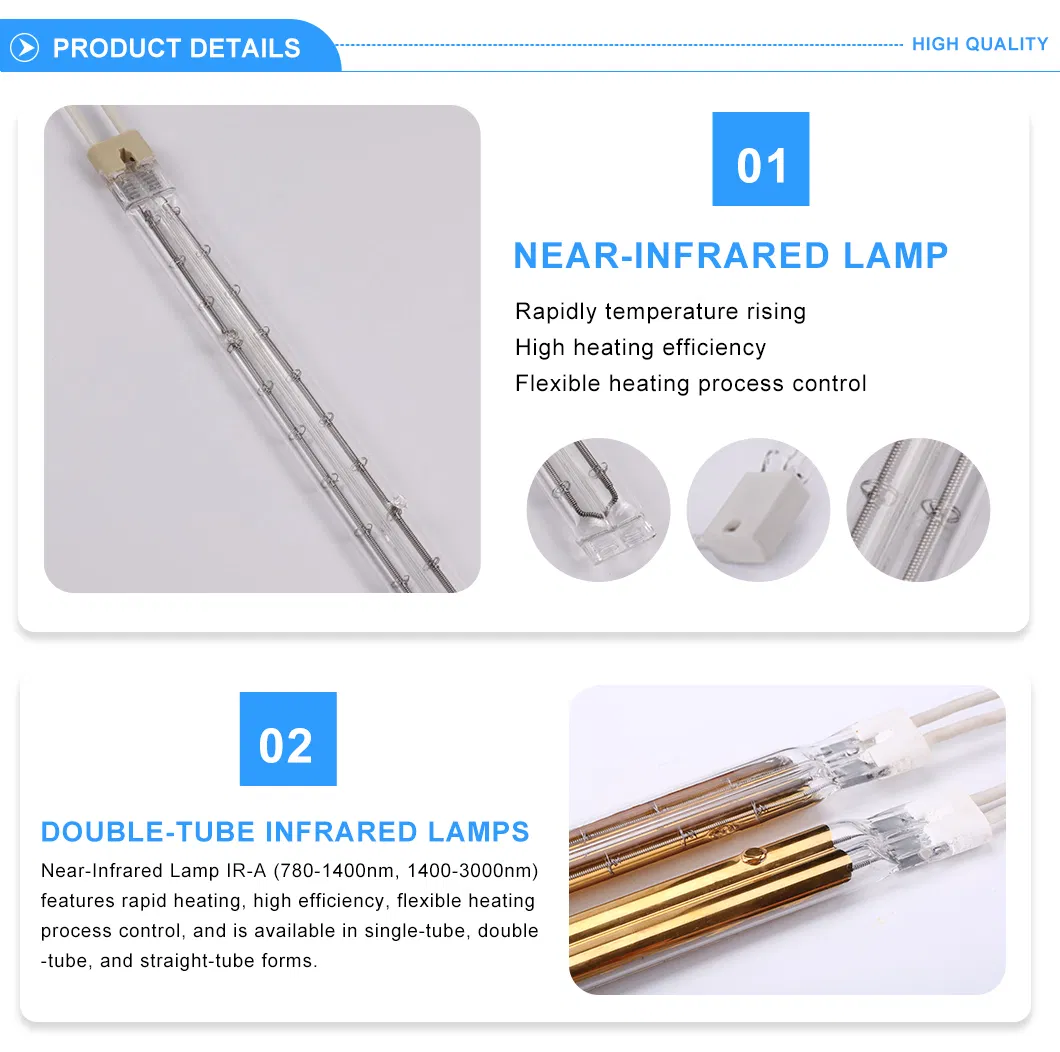

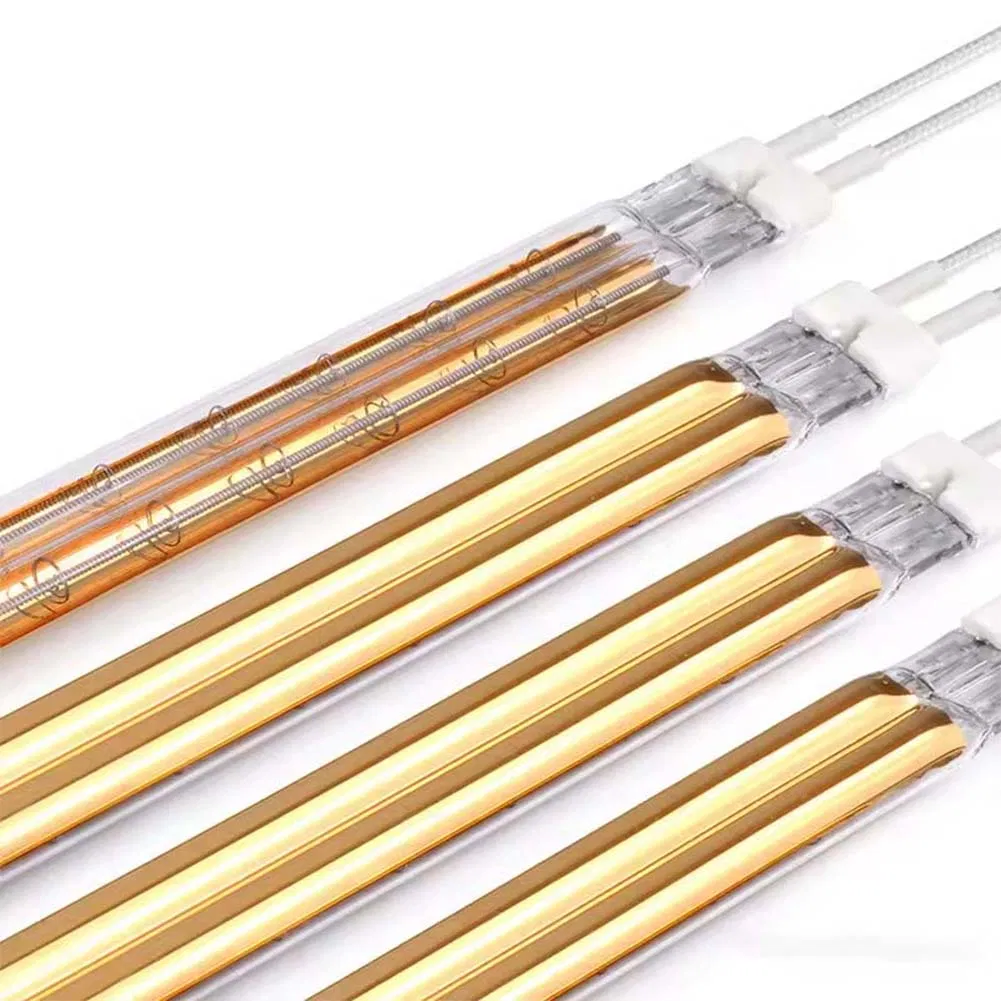

To improve thermal efficiency and save electricity, efficient and durable gold-coated reflection layers can be applied at different angles on single or double-tube infrared lamps, resulting in radiation efficiency of over 96% and extended lamp lifespan.
The gold coating significantly reduces the temperature in the non-heating direction on the rear side, reducing the high temperature of equipment or furnaces, and eliminating the need for a reflector. Gold-plated or ceramic-coated reflection layers concentrate heat energy in the heating direction, improving heating efficiency and saving electricity.
The surface temperature of the lamp tube is below 800°C. It is recommended to use a gold-plated reflection layer. For higher temperatures, a ceramic-coated reflection layer that withstands up to 1000°C is suggested. In addition to the standard 180-degree (semi-circular) coating, custom designs such as 270 degrees (3/4 circle) or other angles can be made according to user requirements.

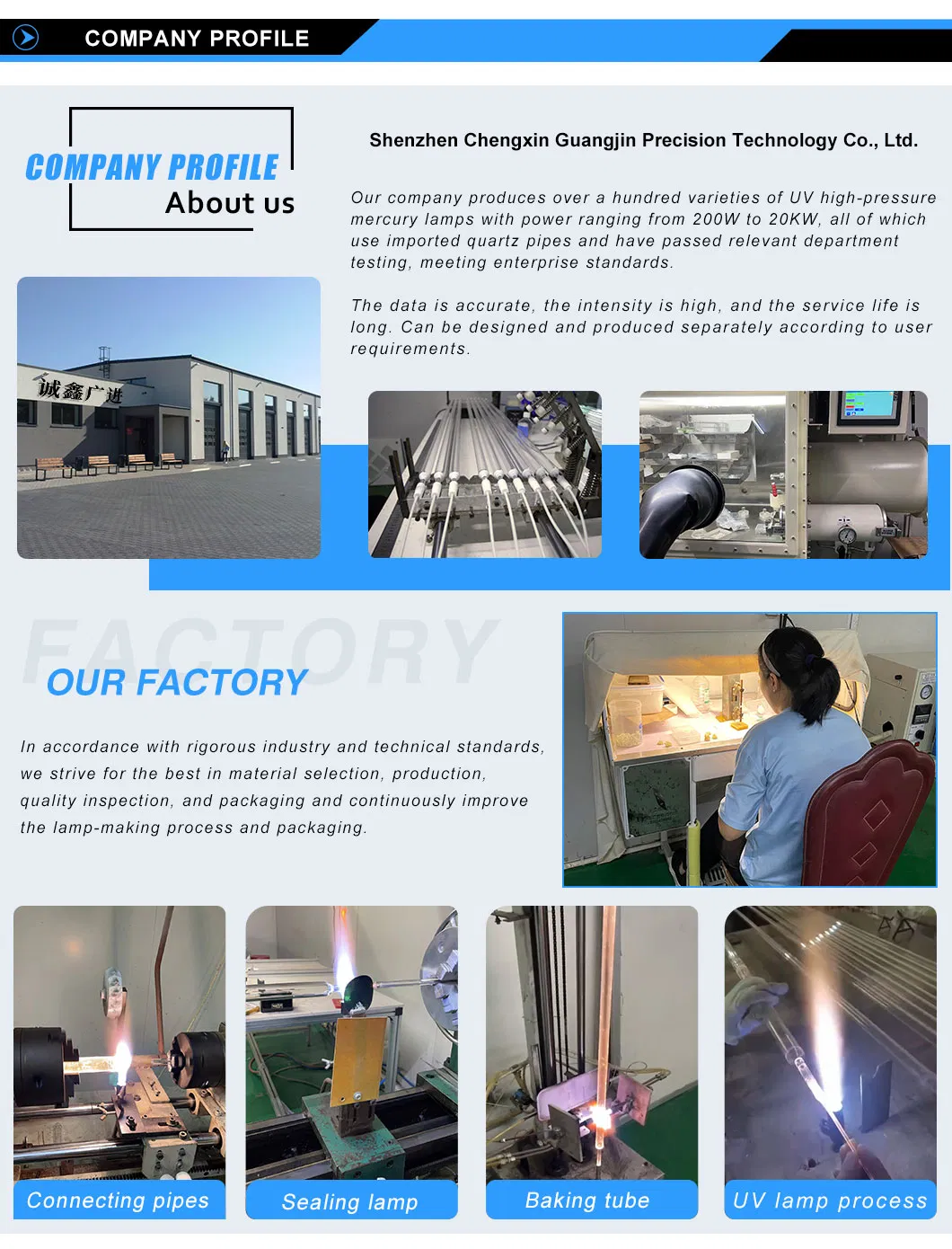

Manufacturing Capabilities
We are a manufacturer that produces, processes, and distributes UV lamps, exposure lamps, infrared lamps, UV electronic power supplies, LED point light sources, transformers, ballasts, capacitors, triggers, lampshades, water-cooled lampshades, quartz plates, water jackets, and various special lamps.
Standard transport package includes Wooden Box + Carton + Paper Tube + Sponge to ensure maximum protection during transit.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional factory with our own production lines, specializing in UV and IR lamp manufacturing.
Can the infrared lamps be customized?
Yes, all products can be customized according to your specific details, including length, power, and coating angles.
What is the typical delivery time?
Orders can be shipped within 3 days at the fastest after payment, depending on the order quantity and stock availability.
Do you provide OEM services?
Yes, we provide OEM services including custom logo printing on products and specialized packaging designs.
What is your policy for damaged goods?
Every lamp is quality-tested. If a bulb is damaged during transportation or has quality issues, we will re-deliver the replacement once confirmed.
What types of coatings do you offer for reflection?
We offer both gold-plated (for temperatures under 800°C) and ceramic-coated (for temperatures up to 1000°C) reflection layers.
